The IP65 Waterproof Die-Cast Aluminium LED Street Light is a high-performance outdoor lighting solution integrating waterproof reliability, high brightness, energy efficiency, and structural durability. It is widely used in municipal engineering, industrial parks, residential areas, and other outdoor scenarios, and its core advantages and detailed parameters are as follows:
Die-Cast Aluminium Material: The main structure is made of high-pressure die-cast aluminium, with surface treatment processes such as spray coating or anodizing that pass 72-hour neutral salt spray tests, achieving excellent corrosion resistance and rust prevention . The one-piece molding process enhances structural strength, enabling the lamp to withstand external impacts and extreme weather such as typhoons .
Efficient Heat Dissipation: The lamp body is designed with a comb-shaped or finned radiator structure, which significantly increases the heat dissipation area .
The separation design of the LED module and power supply avoids mutual superposition of heat fields, while the high thermal conductivity aluminum substrate (2.0W/m.K) quickly transfers chip heat, controlling the junction temperature within 75°C and effectively extending the service life of the light source .
Solar street light Features:
60w 6m ip66 solar outdoor light efficiency led solar street light
1.Elegant All-in-One Design, Aluminum alloy case;
2.Photocell Control + Microwave motion sensor Control + Remote Control;
3.140°wide lighting angle, enlarged LED module; 4.Support 4-5 nights lighting after full charging;
5.Easy to install and Auto on/off/sensor6.solar street light suitable for engineering projects, rural and urban roads, highways, parks, and other fields.
Solar street light Specification:
|
Power
|
40w
|
50w
|
60w
|
80w
|
100w
|
120w
|
|
LED
|
3030 Bridgelux High Efficiency LED Chip
|
|
Luminous Flux
|
6600lm
|
8200lm
|
10000lm
|
13400lm
|
16700lm
|
20000lm
|
|
LifePo4 Battery
|
28AH
|
36AH
|
42AH
|
57AH
|
63AH
|
72AH
|
|
Mono solar panel
|
65W
|
70W
|
80W
|
100W
|
130W
|
140W
|
|
Install Height
|
4~6m
|
5~7m
|
5~8m
|
6~9m
|
7~10m
|
9~12m
|
|
Material
|
4-12m light poel (iron)/ street light:Aluminum+PMMA
|
|

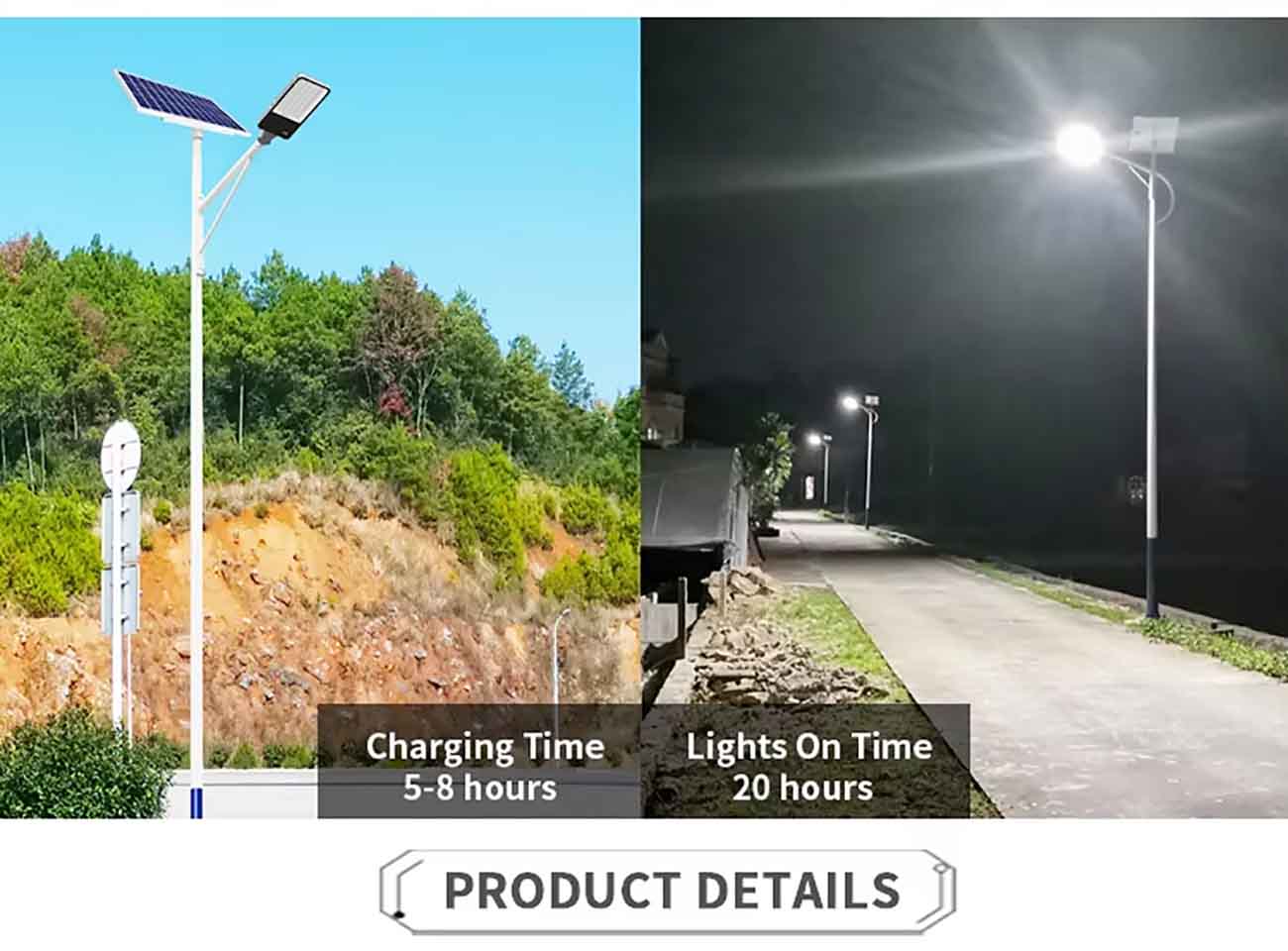

Solar Charging Time
|
6~8 hours
|
The LED light source has a service life of more than 50,000 hours (L70 standard), and the 10,000-hour luminous flux maintenance rate is as high as 97.2% . Compared with traditional street lights, it reduces the frequency of replacement and maintenance costs by more than 50% .
Intelligent Control Options: Supports multiple control modes such as light control (auto-on at dusk and off at dawn), time control, and motion sensing . Some high-end models are equipped with IoT smart control functions and reserved dimming interfaces, allowing remote adjustment of brightness and monitoring of working status .
The motion sensing version can automatically switch to high brightness when people or vehicles are detected and return to low brightness after 30 seconds, further saving energy .
IPv6 network supported.
