Reasonable installation height and illumination area of solar street lamp posts

In rural road lighting planning, the height of streetlight poles is not necessarily better or cheaper - it directly determines the diameter of the light spot, the uniformity of illumination, and the range of shadow blind spots

The meter pole is equipped with LED light sources of 15W or more, with an ideal illumination radius of about 12-15 meters;

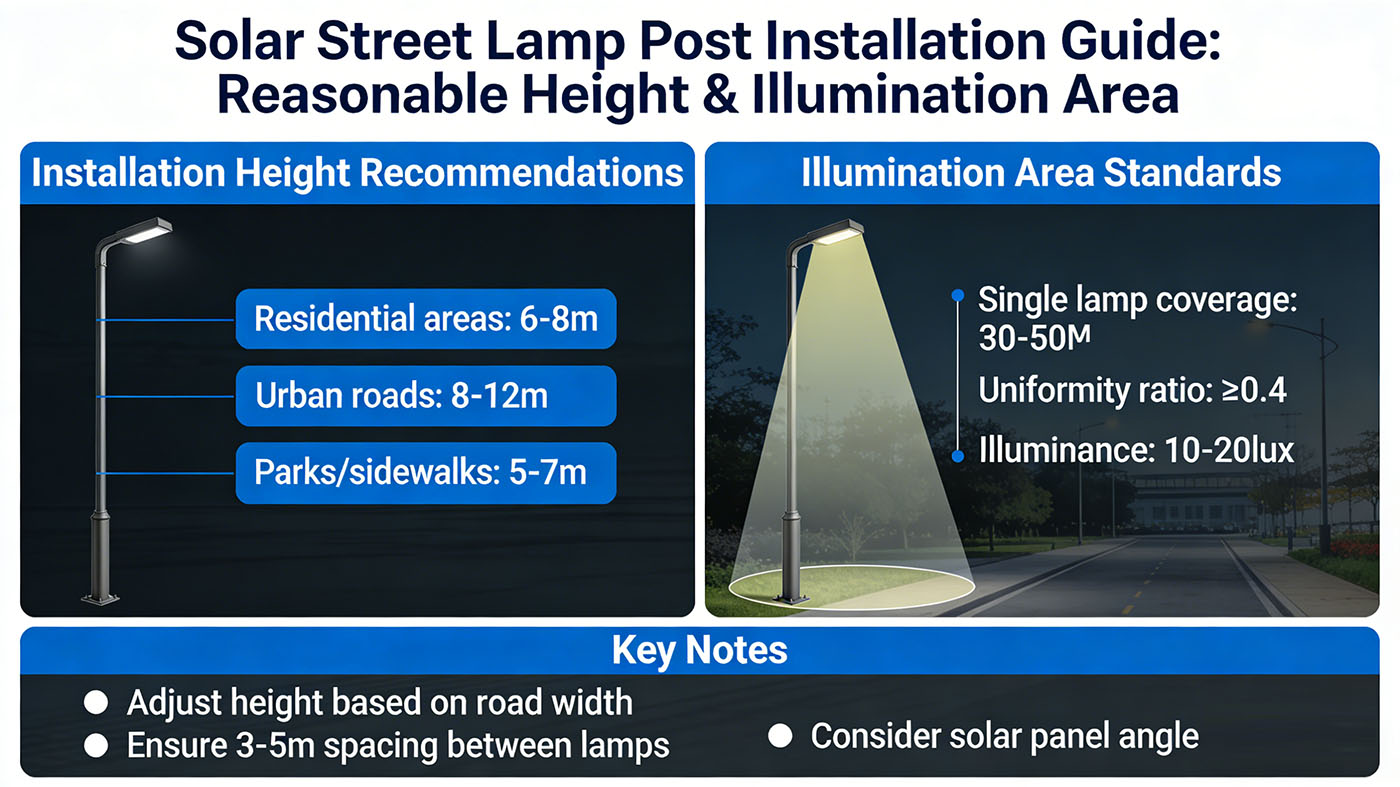

Reasonable Installation Parameters of Solar Street Lamps

5-meter poles are suitable for alleyways or small paths in front of houses, with a coverage width of 8-10 meters for a softer effect;

And the 8-meter pole needs to be matched with a lens for precise light control, otherwise it is easy to cause the center to be too bright and the edges to be suddenly dark.

Height also affects the angle of light received by solar panels and the probability of snow cover in winter. It is recommended to mainly explore 5-6 meters in rainy areas in the south, and up to 8 meters in open areas in the north, but the base must be reinforced to resist wind.

Recommended installation height and lighting area for different scenarios

Courtyard, sidewalk, community path (3-5 meters).

Suitable for 3-4 meter low poles, paired with 15-20W light source.

The illumination radius is about 4-6 meters, covering an area of 20-50 square meters, with soft and non glaring light.

Suitable for villa driveways, park trails, doorstep paths, etc.

Rural village roads and roads in front of houses (5-6 meters)

Recommended pole height of 5-6 meters, equipped with 18-30W LED light source.

The single lamp covers a width of 8-10 meters, with a radiation radius of 12-15 meters and an area of approximately 40-60 square meters.

It can provide full width lighting for a 3.5-meter-wide cement road, making nighttime travel more reassuring for the elderly and children.

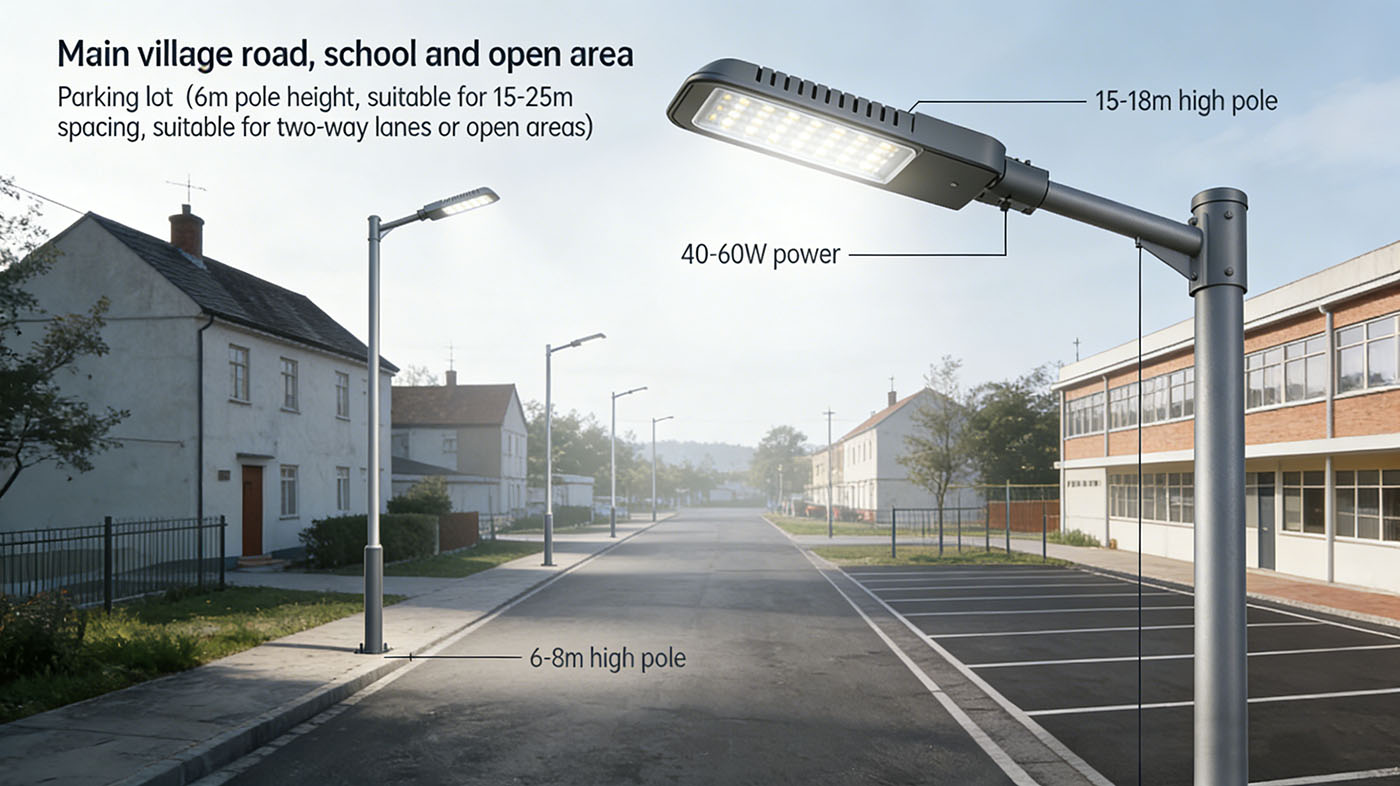

Main village roads, school surroundings, parking lots (6-8 meters)

Choose a 6-8 meter high pole and pair it with a 40-60W high-power light source.

The coverage radius can reach 15-25 meters, suitable for two-way lanes or open areas.

Attention should be paid to the light control design to prevent the center from being too bright and the edges from becoming suddenly dark.

Square, logistics park, highway service area (9-15 meters)

Belonging to the category of high pole lighting, suitable for large-scale centralized lighting.

The 13-15 meter pole can cover a range of 40-50 meters, saving the number of lamps and maintenance costs.

It is necessary to match high-power photovoltaic panels (above 200W) with battery systems to ensure battery life.
