12.8V Large Capacity LiFePO4 Battery Integrated Solar Street Light IP66 Waterproof Outdoor LED Solar Road Light With Remote Control

12.8V Large Capacity LiFePO4 Battery Integrated Solar Street Light IP66 Waterproof Outdoor LED Solar Road Light With Remote Control

Name: 12.8V Large Capacity LiFePO4 Battery Integrated Solar Street Light IP66 Waterproof Outdoor LED Solar Road Light With Remote Control
Availability: InStock

LRC-H40W 40W Solar Street Light | 230Lm/W High Brightness 7200Lm Remote Control Motion Sensor Road Lamp.

All In One Solar Street Light | Philips 5050 LED 230Lm/W PIR Motion Sensor Remote Control Road Lamp.

Factory OEM 30W~150W Solar Powered Street Lamp with MPPT Controller & Intelligent Dimming Function.

IP65 Waterproof Integrated Solar Streetlight, Military LiFePO4 Battery 3-5 Days Rainy Backup Outdoor Lighting.

رقم الصنف :
LRC-H40W
الطلب (الحد الأدنى لكمية الطلب) :
36
نوع البطارية :
12.8V 30ah
طاقة الألواح الشمسية :
65W 18V
طاقة LED :
40W

استفسر الآن

تفاصيل المنتج

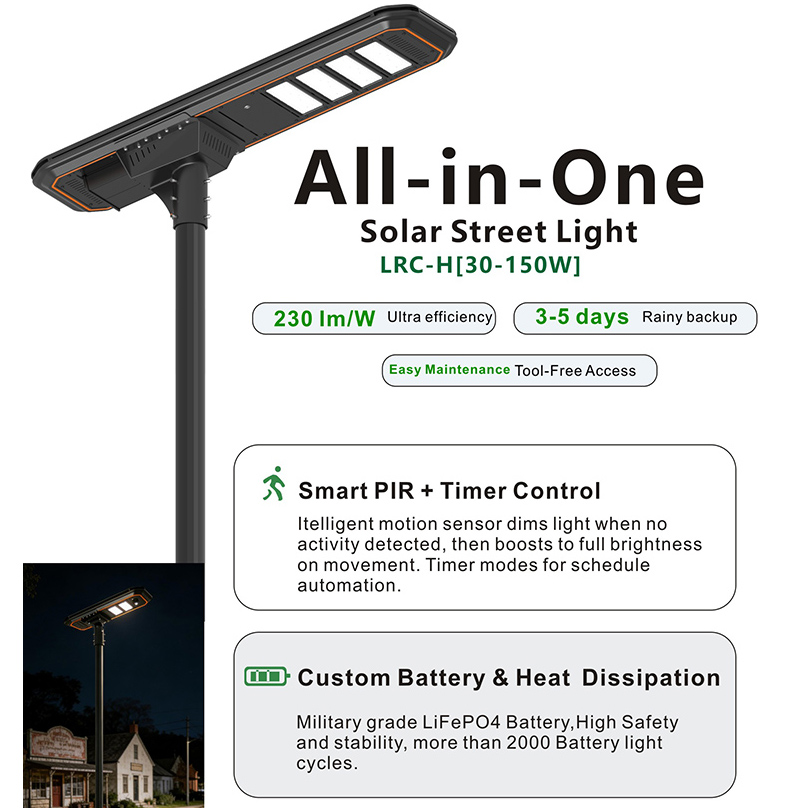

All-in-One Solar Street Light

Industry-Leading High-Efficiency Lighting

The LRC-H40W is equipped with original Philips 5050 LED chips, achieving a super high luminous efficacy of 230 Lm/W and a total luminous flux of 7200 Lm. The 150°×80° ultra-wide beam angle realizes large-area uniform road coverage, perfectly matching the 20-25m standard installation spacing for 40W solar street lights.

Core Optical & Performance Parameters

Parameter	Specification
Model	LRC-H40W
Rated Light Power	40W
Typical Luminous Flux	7200 Lm
LED Luminous Efficacy	230 Lm/W
Color Temperature Range	2700-6500 K
Beam Angle	150° × 80°
Minimum Working Hours (100% Full Brightness)	14 H
Minimum Working Hours (30% Energy-Saving Brightness)	46 H
Light Control Activation Threshold	30 Lux

All In One Solar Street Light

Dimensional & Packaging Parameters

Category	Specification
Lamp Body Overall Dimensions	918 × 378 × 60 mm
Mounting Base Dimensions	236 × 140 × 112 mm
Lamp Outer Package Dimensions	990 × 440 × 165 mm
Base Outer Package Dimensions	415 × 175 × 160 mm

High Efficiency Solar & IP65 Waterproof Structure

Adopts high conversion monocrystalline silicon solar panel, excellent weak-light power generation, conversion efficiency up to 23%, auto-charges during daytime under sunlight.

Whole lamp body with IP65 full waterproof grade, dustproof & rainproof, works steadily in rainy, snowy and coastal humid harsh environments.

High Efficiency Solar & IP65 Waterproof Structure

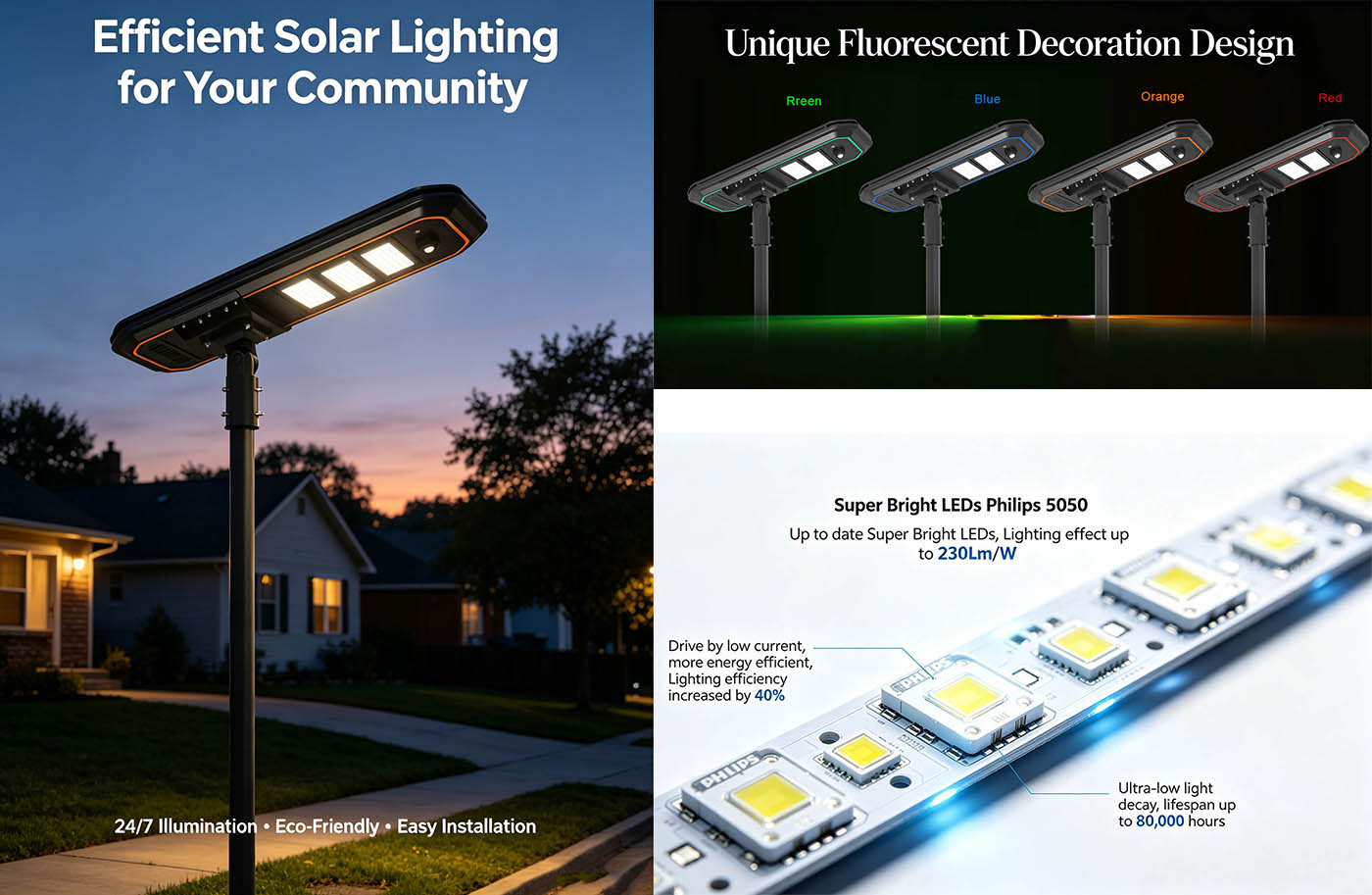

Modular Philips 5050 LED Lighting System

Original Philips 5050 high-brightness LED chips, ultra-high luminous efficiency 230Lm/W, total lifespan up to 80,000 hours, ultra-low light decay.

Bat-wing optical distribution lens design, light transmittance reaches 93%, 150°×80° wide beam angle for uniform & larger road illumination range; customized independent heat sink for outstanding heat dissipation performance.

Low-current driving design, lighting efficiency increased by 40% vs conventional street lamps, more power-saving.

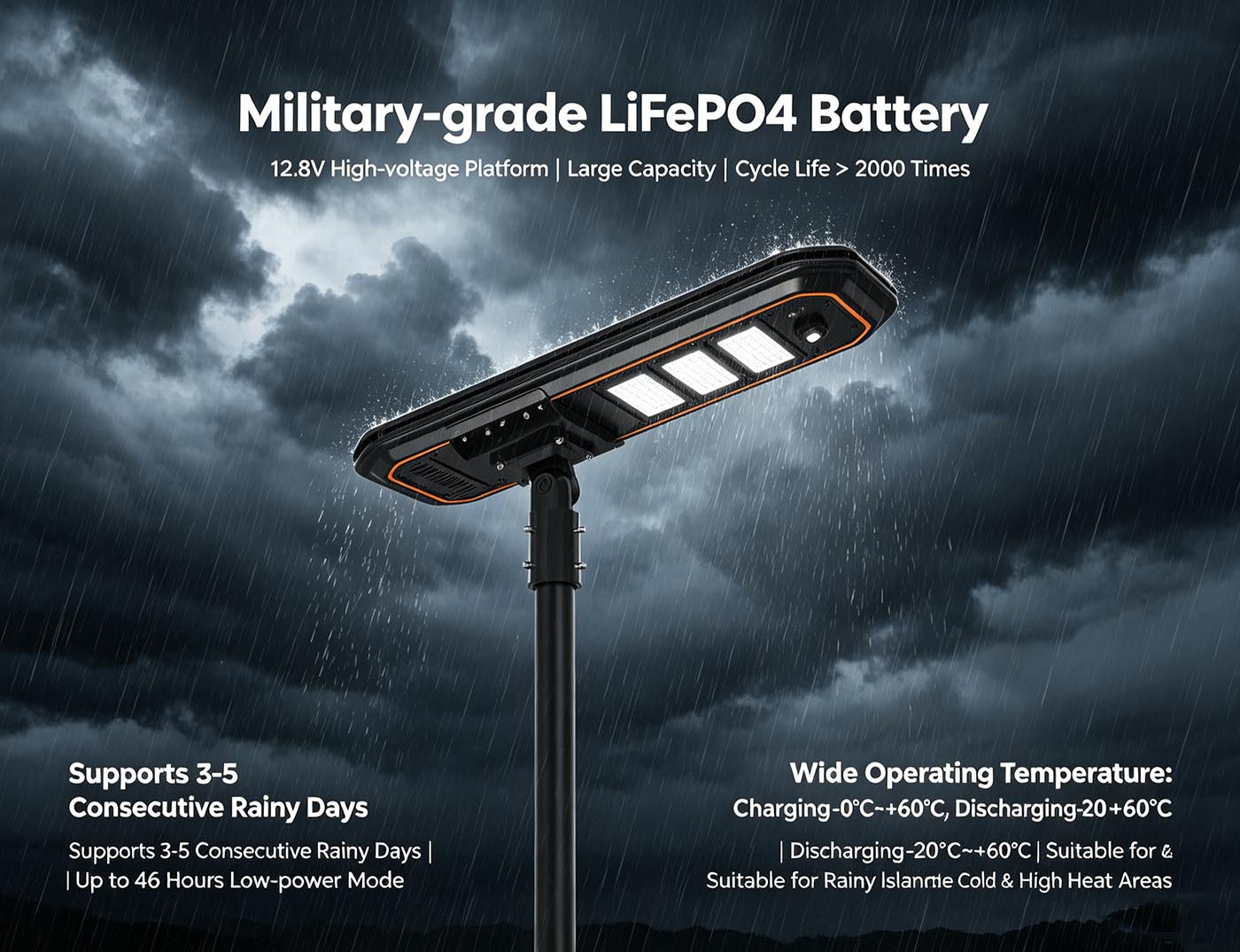

Military-Grade LiFePO4 Battery & Full Protection System

Built-in military-level lithium iron phosphate battery, over 2000 charge-discharge cycles, superior safety & thermal stability; surrounded by reinforced metal protective shell.

Integrated multi-protection circuit: overcharge, over-discharge, high/low temperature anti-damage protection, effectively extend battery service life.

Full-charged lamp supports continuous standby for 3~5 rainy days, meets long-time cloudy weather lighting demand.

Intelligent Multi-Control Driver System

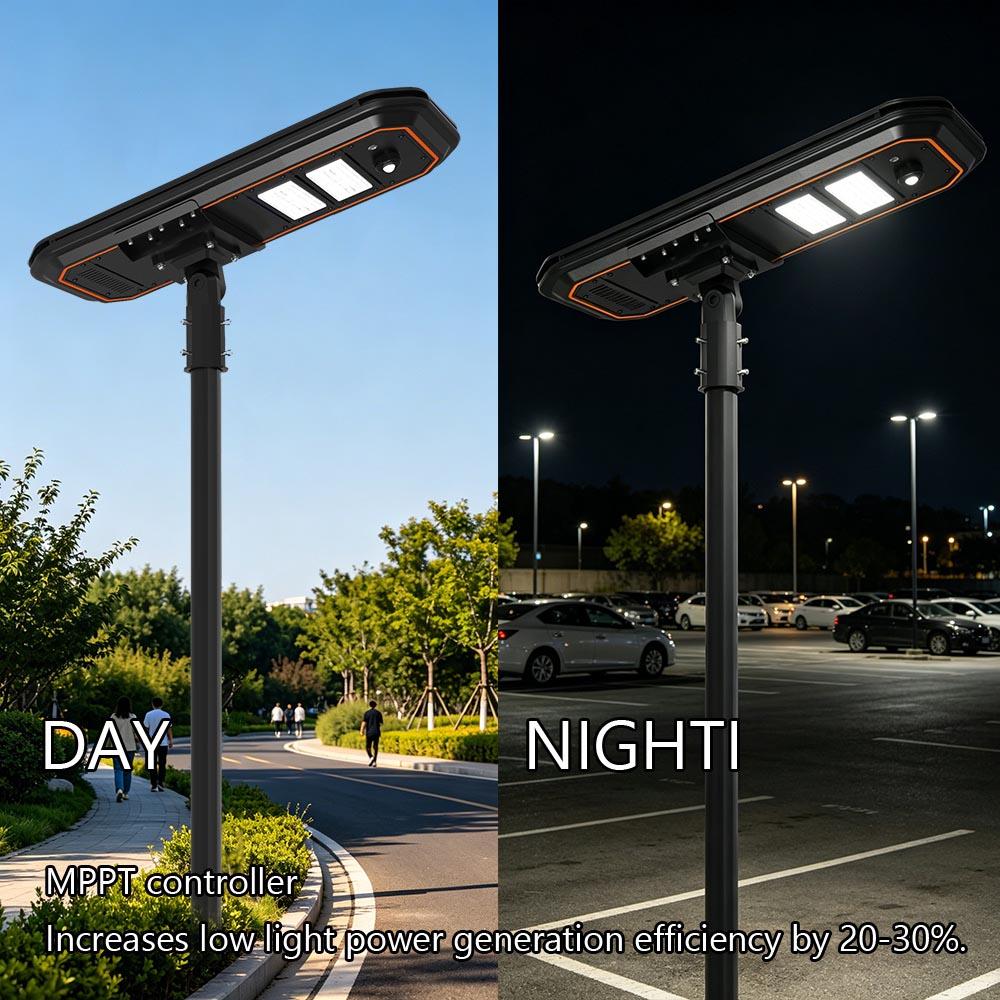

MPPT Tracking Charging Tech: 95% high charging efficiency, faster solar energy collection speed.

Constant Current Drive: Drive efficiency＞95%, suppress LED light attenuation and prolong lamp service life.

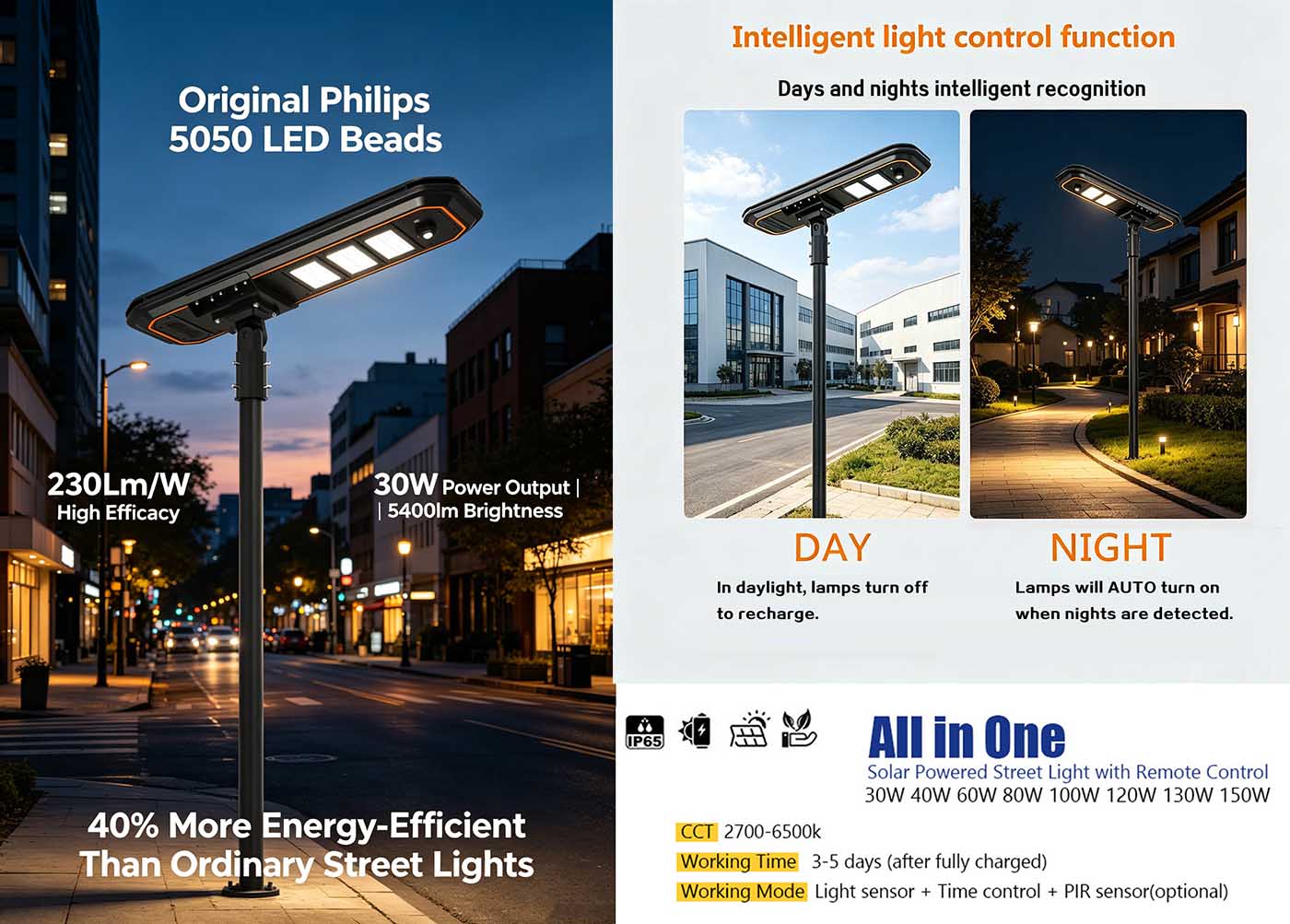

Multi Working Modes:

Light sensor auto on/off: auto turn on at dusk, shut down for charging at dawn;

PIR human motion induction: 100% full brightness when people pass by, keep 30% dim energy-saving brightness without motion;

Optional timing control + 2.4G remote control for manual brightness adjustment.

Parameter project	LRC-H30W	LRC-H40W	LRC-H60W	LRC-H80W
Photovoltaic panel configuration	50W 18V	65W 18V	80W 18V	100W 18V
Lithium iron phosphate battery	12.8V24Ah	12.8V30Ah	12.8V36Ah	12.8V42Ah
Philips 5050 LED bead quantity qty	24 PCS	36 PCS	56 PCS	114 PCS
Rated power	30W	40W	60W	80W
Rated luminous flux	5400lm	7200lm	10800lm	14400lm
High luminous efficacy	Unified 230Lm/W, standard across the entire series
Full brightness/30% dimming range	13h /43h	14h/46h	14h/46h	13h/44h
Duration of cloudy and rainy weather	Full specification 3-5 days
Adapt to installation pole height	4~6m	4~6m	6~8m	6~8m
Installation spacing of lighting fixtures	15~20m	20~25m	25~30m	30~35m

21 years professional solar lamp manufacturing experience, 50+ professional R&D & production employees, monthly production capacity over 50,000pcs.

Support OEM & ODM customized service, full certificates: CE, ISO, ROHS, CB, TUV, reliable for global government road project & bulk wholesale orders.

Available power options: 30W/40W/60W/80W/100W/120W/130W/150W, CCT adjustable from 2700K~6500K.
