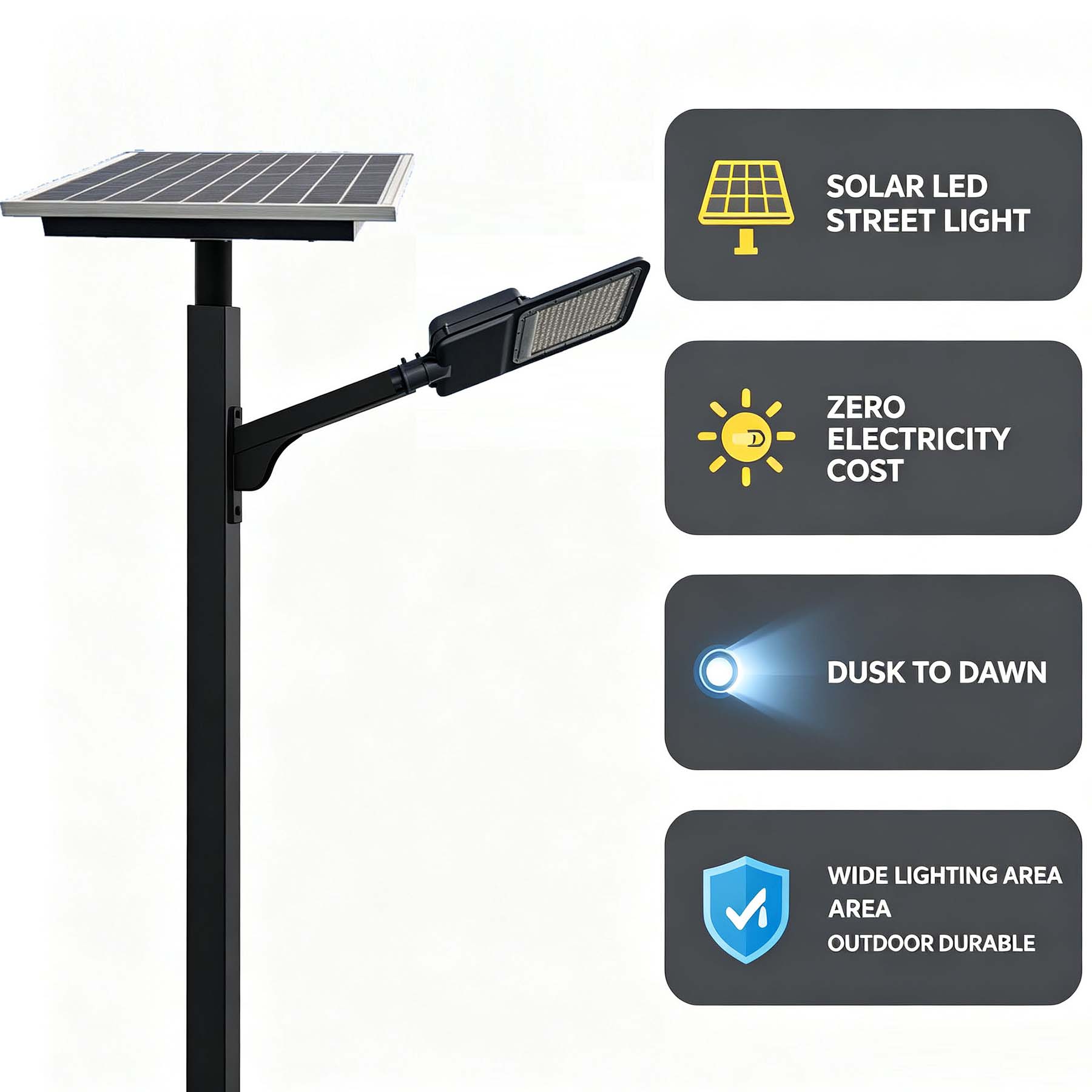

Split Solar LED Street Light LR-JD Series 20W 40W LiFePO4 Battery IP65 Outdoor Solar Street Lamp for Village Road

LR-JD series split solar LED street light 20W/40W, high-quality aluminum shell Philips 5050 LED outdoor solar street light

Philips 5050 LED chip, high luminous efficiency Philips 5050 LED beads, high luminous efficiency

Lumen 160lm/w high luminous efficiency per watt, CCT color temperature adjustable from 2700-6500K, warm to cool light options, color rendering greater than 75Ra, uniform and soft road lighting.

Lithium iron phosphate batteries have good high temperature resistance, long cycle life, and stable performance in harsh outdoor environments. The separated installation design avoids high temperature aging caused by lamp heat.

Split design with a split structure, the angle of the solar panel can be independently adjusted to achieve maximum sunlight absorption. The panel, battery, and lamp head are separate, and defective parts can be replaced separately, resulting in low maintenance costs.

The aluminum alloy shell reaches IP65 dustproof and waterproof level. The die cast aluminum shell has good heat dissipation, corrosion resistance, and is suitable for long-term outdoor use.

Die cast aluminum alloy shell has excellent heat dissipation, corrosion resistance, and is suitable for long-term outdoor service.

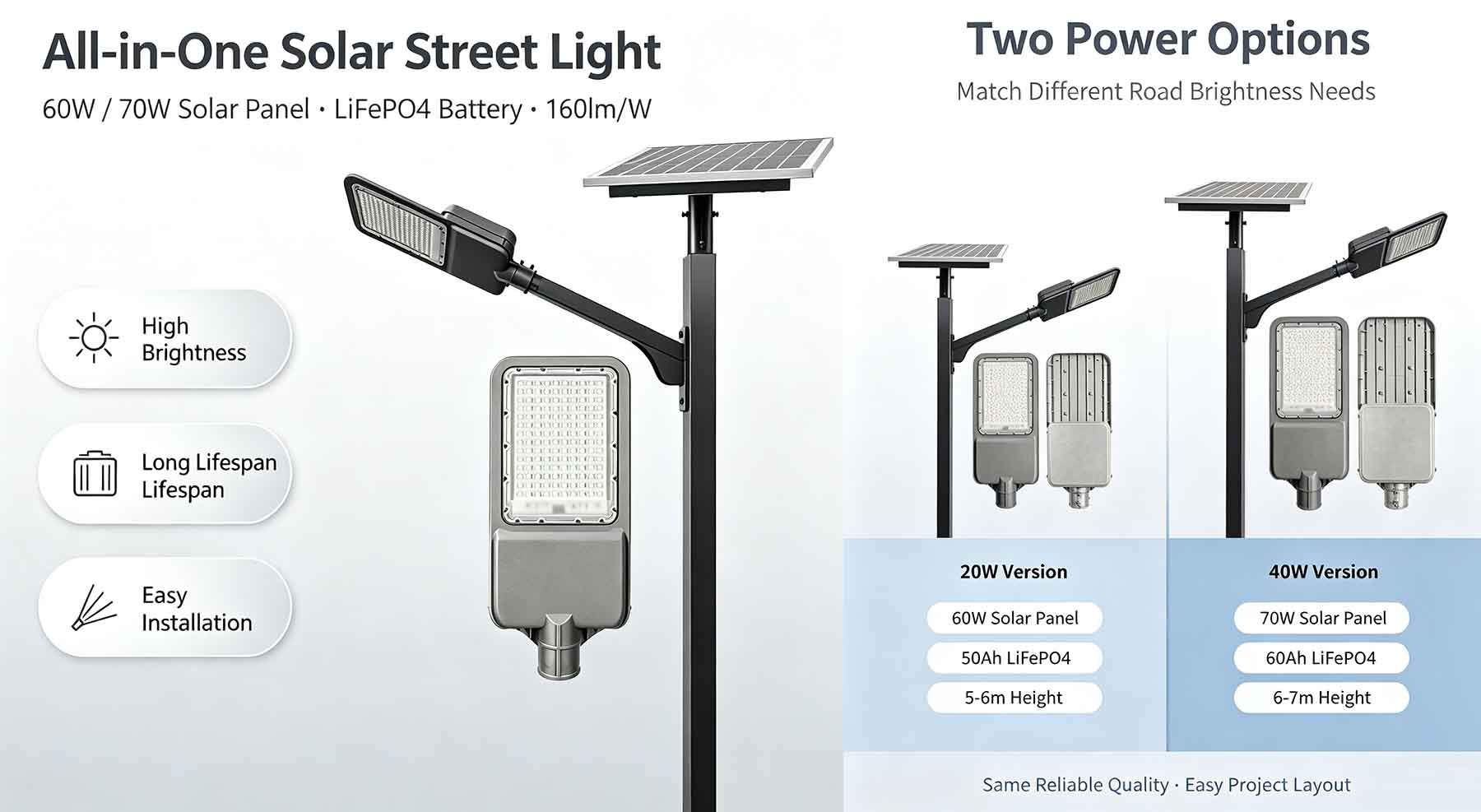

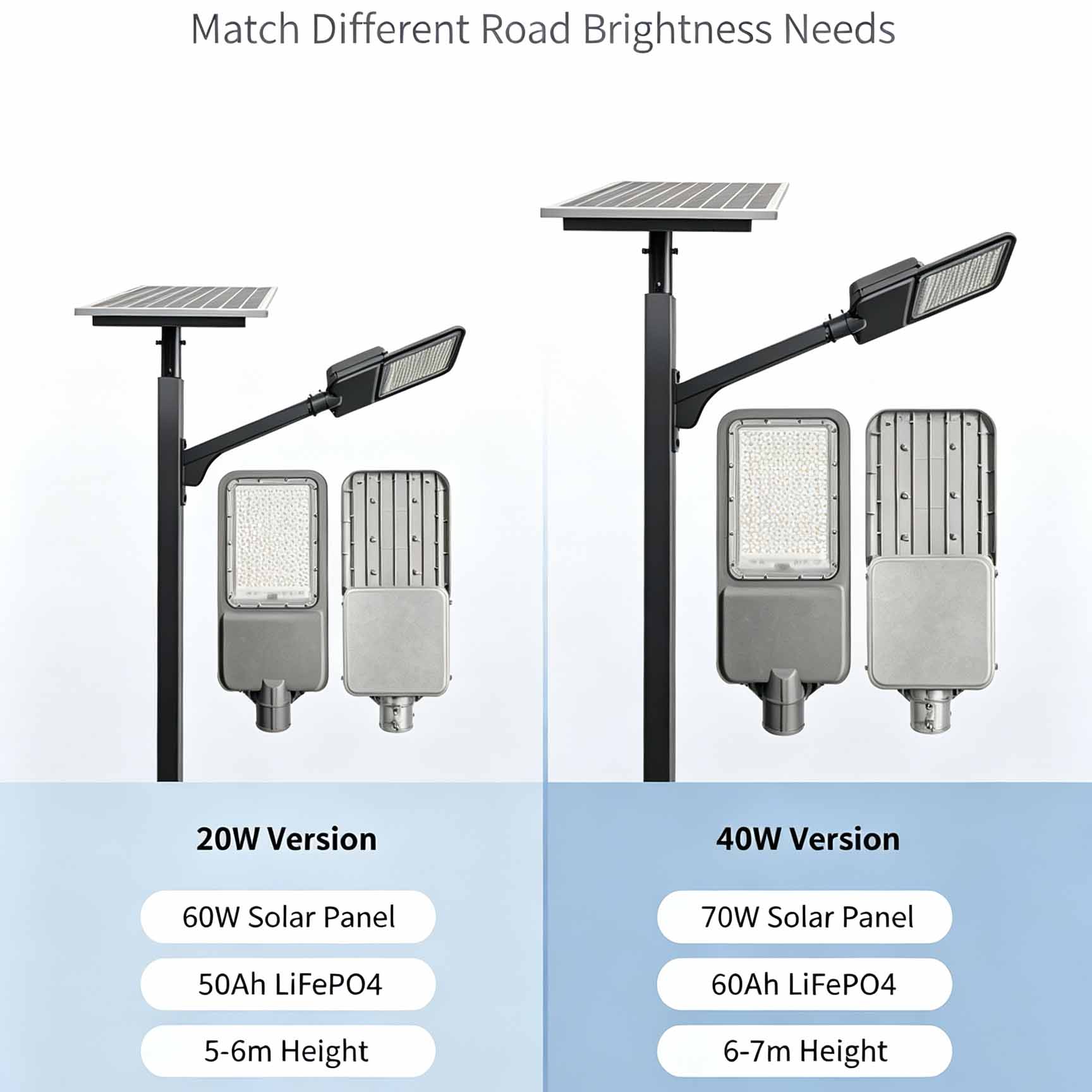

Two power options for different road requirements, dual power version suitable for different roads

20W version: Installation height of 5-6m, suitable for rural lanes and residential roads.

40W version: Installation height of 6-7m, suitable for main rural roads and park roads.

The lamp spacing is 18-19m for easy project layout.

20W suitable for 5-6 meter poles, rural small roads and residential roads; 40W compatible with 6-7 meter poles, rural main roads, and park roads; Unified 18-19 meter spacing between cloth lights for convenient engineering design.

3-year warranty support provides complete after-sales support for project bidding and bulk export orders, suitable for engineering bidding and foreign trade bulk orders.

Installation requirements: Solar panels require separate brackets; Pay attention to the direction of the panel (facing the sun) to avoid obstructing trees or buildings.

Wiring protection: Waterproof connections are required between solar panels, batteries, and lamp heads; Protect the circuit from rainwater and oxidation.

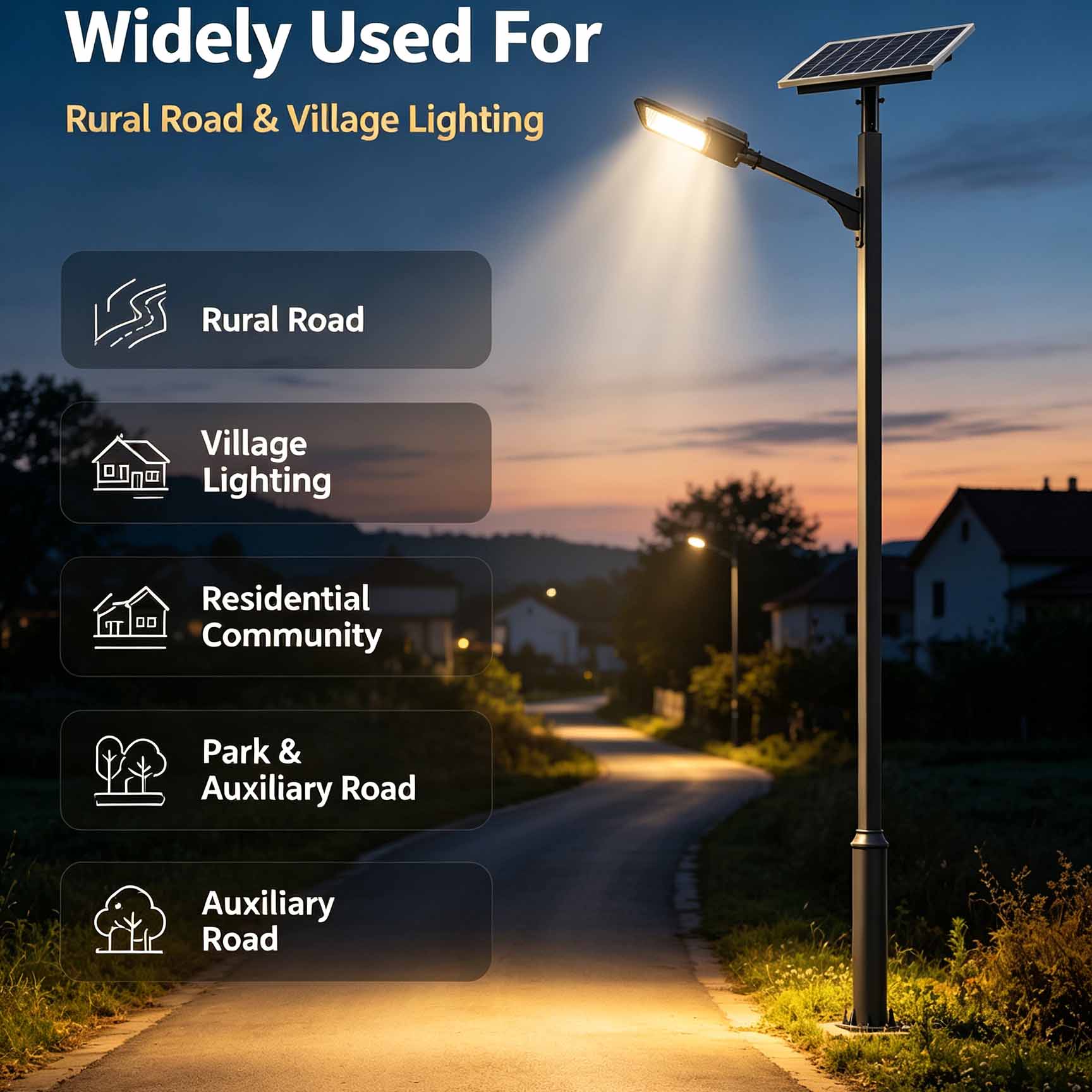

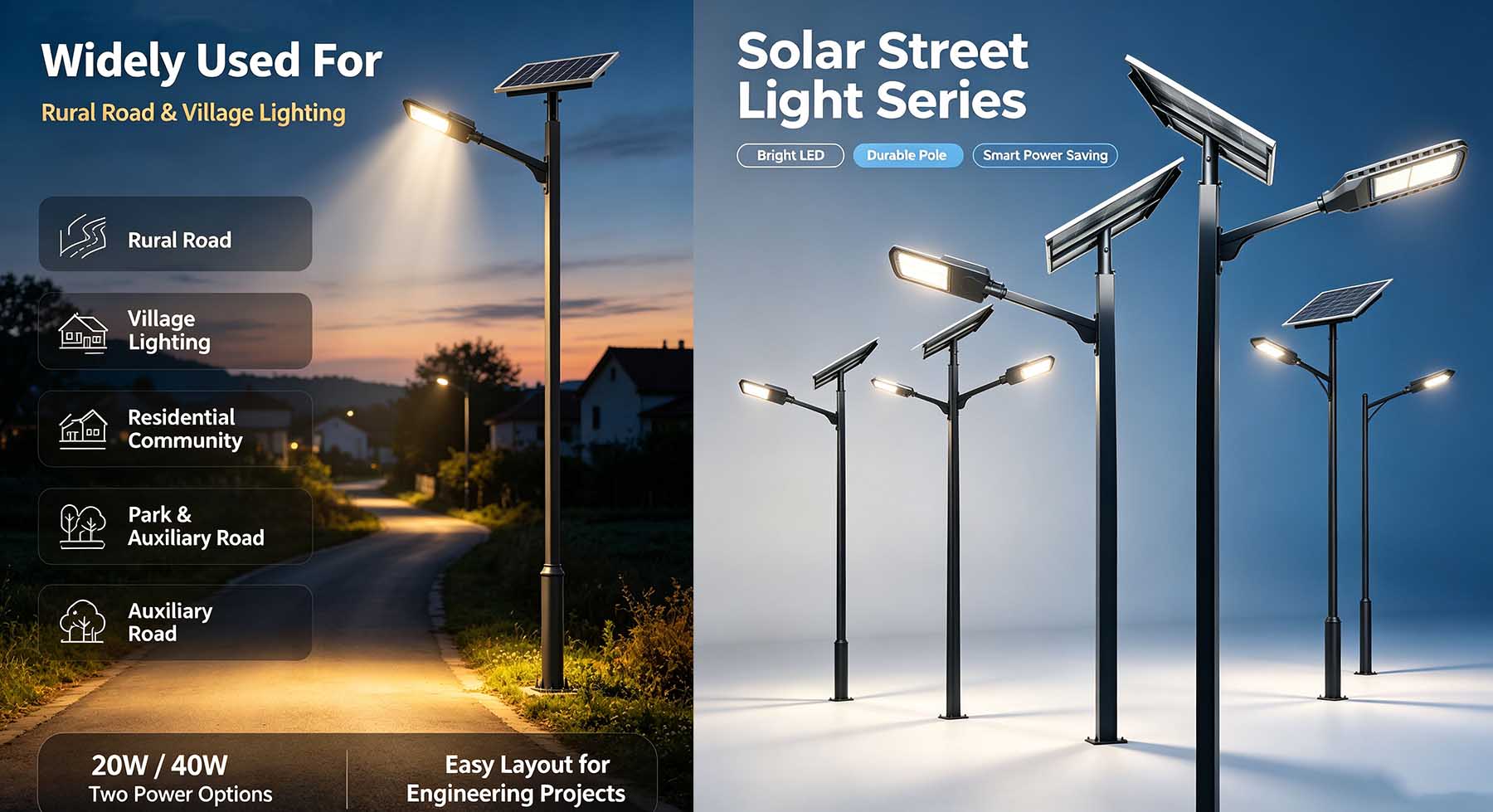

Priority of Split Solar LED Street Light application scenarios: rural road renovation, project bidding, and the best choice for places that require long-term backup rainy lighting.

Compared with integrated solar street lights, Split Solar LED Street Light can achieve better power generation and battery life, but the installation process is not just an integration step. Integration is beneficial for simple and fast installation; Split focuses on stable long-term operation.

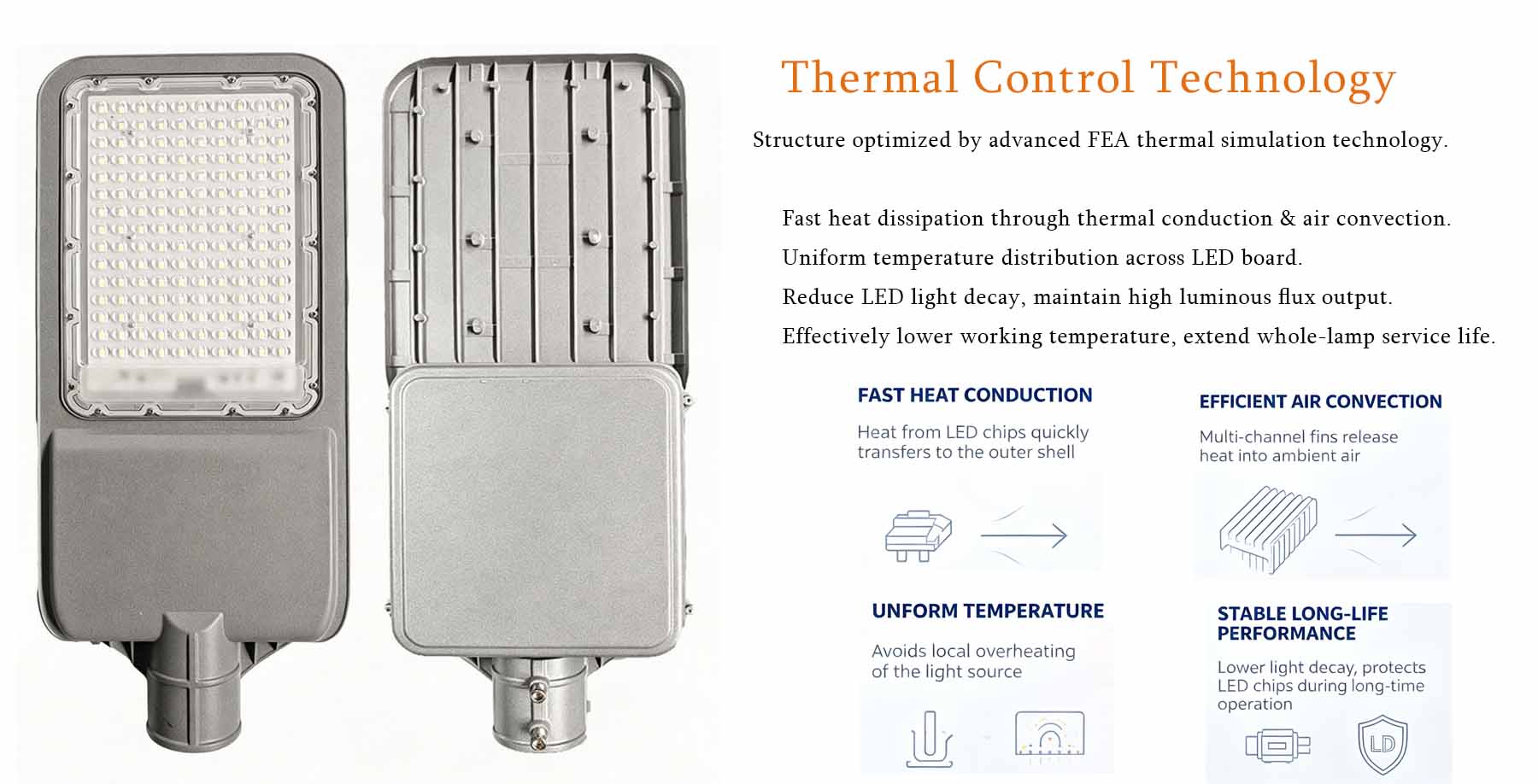

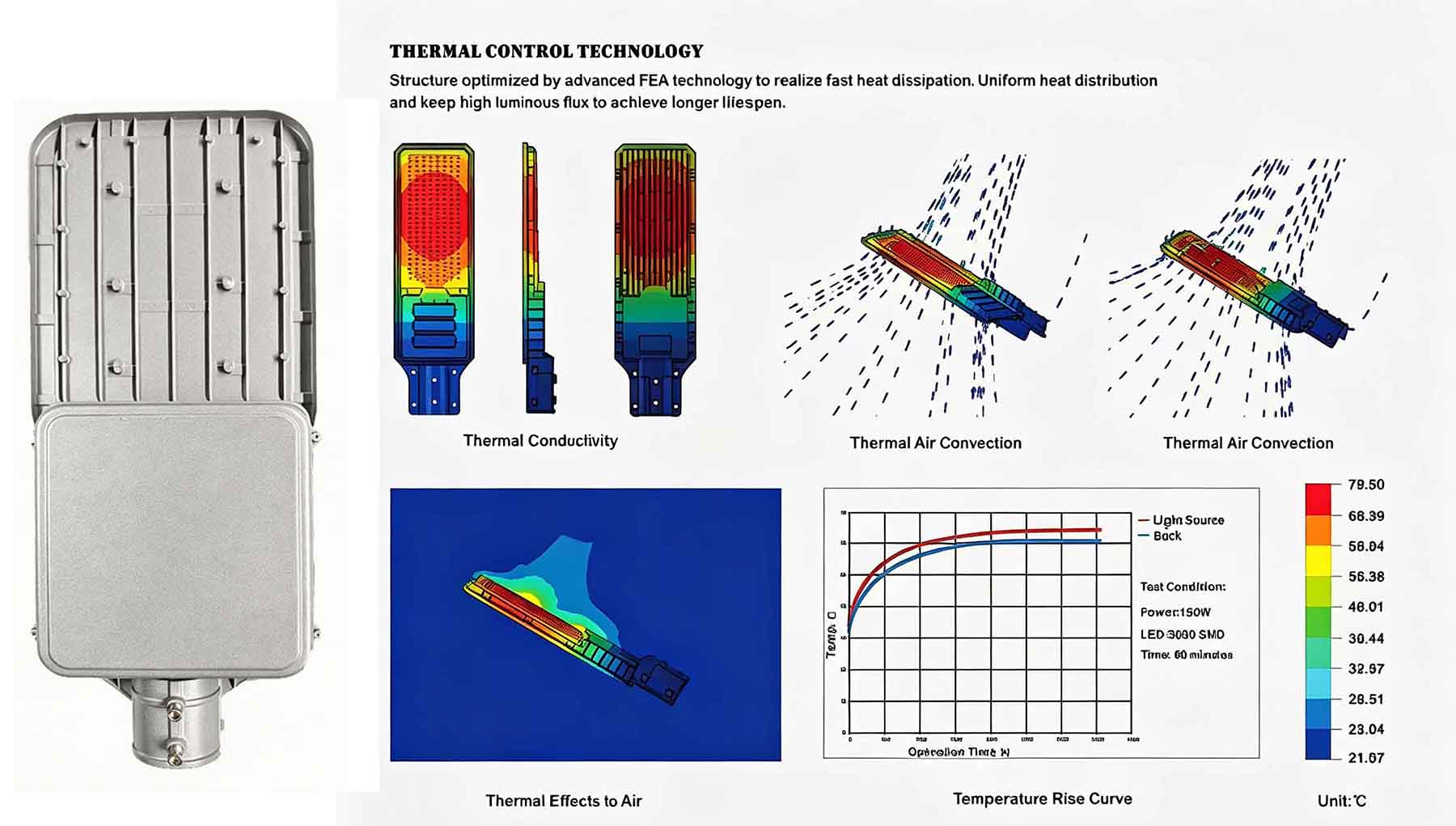

Die cast aluminum shell forms a multi-channel heat dissipation structure. The heat generated by LED chips is quickly conducted to the casing and dissipated into the ambient air, avoiding local overheating of the light source.

Long term operation can maintain temperature stability and protect LED chips.

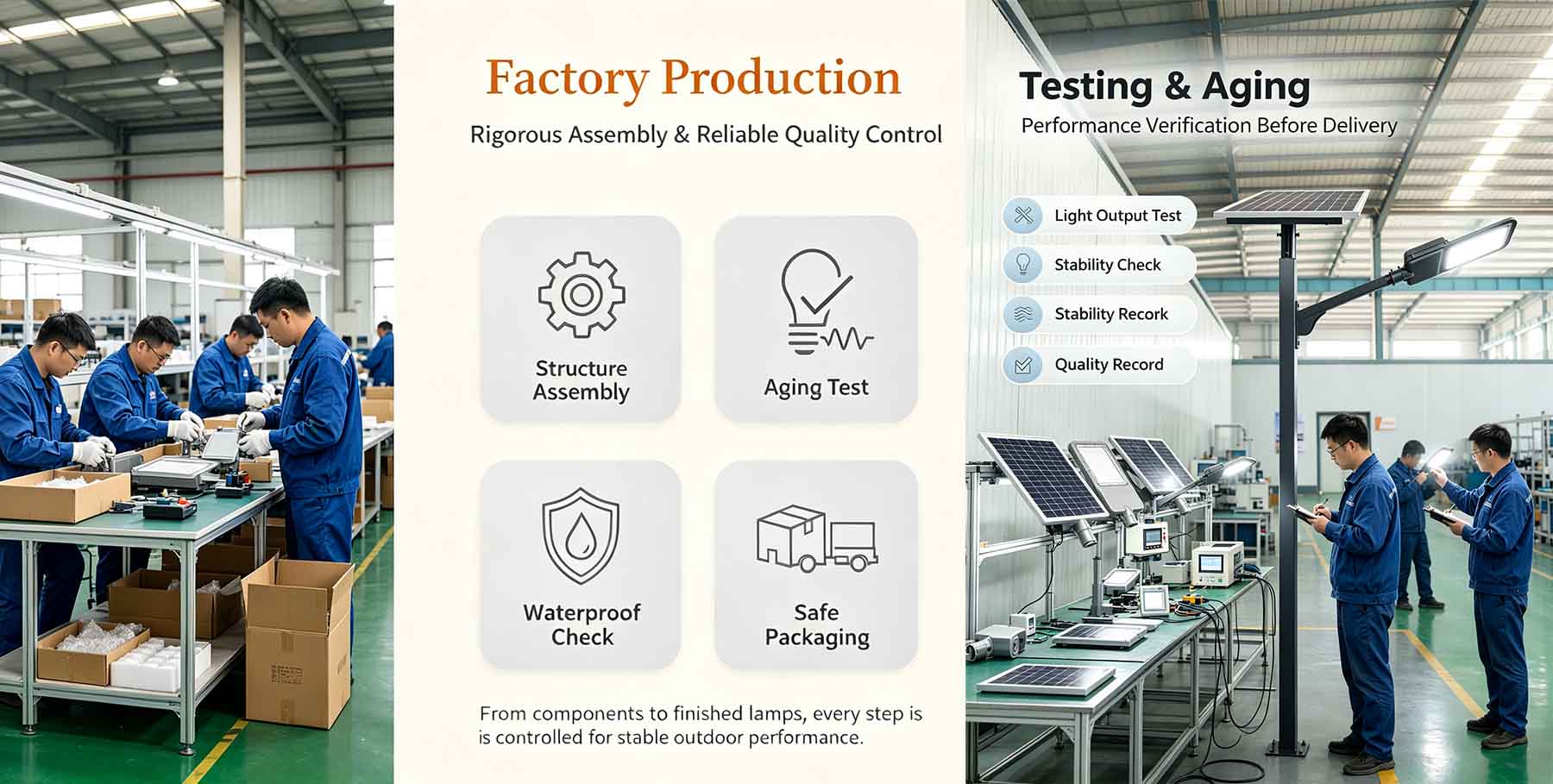

Our factory is a professional manufacturer specializing in solar outdoor lighting products, with a complete production line for solar panels, lithium-ion batteries, and LED lamp heads.

We strictly carry out comprehensive testing of raw material incoming inspection, aging test, waterproof test, and performance calibration.

We focus on providing split solar street lights, integrated solar street lights, and other solar lighting solutions for global engineering and wholesale customers.

Support OEM and ODM customization, project solution consultation, and fast delivery of bulk orders.

Our products have passed relevant outdoor lighting certifications and are widely exported to many countries. We provide stable product quality and comprehensive after-sales service for our overseas partners.

Frequently Asked Questions

Q1: What is the power supply selection for LR-JD split solar street lights?

A: We offer two standard versions: 20W and 40W. The 20W is paired with a 60W solar panel and a 3.2V 50Ah lithium iron phosphate battery; 40W matched with 70W solar panel and 3.2V 60Ah lithium iron phosphate battery.

Q2: What is the recommended installation height and spacing between lighting fixtures?

A: 20W model: installation height of 5-6m, lamp spacing of 18-19m.

40W model: installation height of 6-7m, lamp spacing of 18-19m.

Q3: What LED chip does this solar street light use?

A: Equipped with Philips 5050 LED chip, the luminous efficiency is up to 160lm/W, the color rendering index is greater than 75Ra, and the color temperature can be adjusted from 2700-6500K.

Q4: How is the waterproof performance? Can it work in heavy rain?

A: IP65 rating. Die cast high-quality aluminum shell, dustproof and rainproof, suitable for all-weather outdoor environment. Do not immerse the lamp in water.

Q5: Why choose lithium iron phosphate batteries as split solar street lights?

A: Lithium iron phosphate batteries have excellent high temperature resistance and long cycle life. Split installation keeps the battery away from the heat source of the lamp, effectively reducing high temperature aging and extending the service life of the entire lamp.

Q6: How long is your warranty period?

A: 3-year full warranty. We provide spare parts for after-sales maintenance.

Q7: Can you support OEM and ODM services?

A: Yes, it is. Customized logos, shell colors, and parameter adjustments can be used for bulk project orders.

Q8: What scenarios are LR-JD solar street lights suitable for?

A: Widely used in rural road renovation, village lighting engineering, residential areas, parks, auxiliary roads, and lighting in remote areas off the grid.
